Conductive Foam Rectangle RF Shielding Gasket For MRI Faraday Cage Emi Rfi Fabric

Name: Conductive Foam Rectangle RF Shielding Gasket For MRI Faraday Cage Emi Rfi Fabric
Brand: neutral
Price: 500.00 USD

Wholesale Conductive Foam Rectangle RF Shielding Gasket For MRI Faraday Cage Emi Rfi Fabric from china suppliers

Model Number : neutral

Place of Origin : Jiangsu, China

Brand Name : neutral

Supply Ability : 1000 Piece/Pieces per Week

Packaging Details : 1 pcs in one carton

MOQ : >=1 Pieces

Price : $500.00

Certification : CE RoHS

Applications : Electronic, Automotive, Aerospace, Medical

Color : Black, White, Silver, Gold, Custom

Frequency Range : DC - 6GHz

Humidity Resistance : Up to 95%RH

Impedance : 50 ohms - 500 ohms

Length : Custom

Material : Metal, Foam, Rubber, Plastic

Pressure Resistance : Up to 20psi

Shape : Round, Rectangular, Square, Custom

Surface Finish : Plain, Nickel Plated, Silver Plated, Gold Plated

Temperature Resistance : Up to 200℃

Thickness : 0.25mm - 10mm

Voltage Resistance : Up to 10kV

Width : Custom

application : mri faraday cage

length : 1m

shape : customized

Contact Now

Foam gasket with conductive adhesive tape

Product Description

• Product features for foam gasket with conductive adhesive tape

1. Compact conductive fibers, no sharp edges

2. Good elasticity and consistency

3. Conductive adhesive

4. Low surface contact resistance

5. Shielding performance will not reduce after 10,000 times friction

6. Thin section suitable for I/O and D- subminiature lining

7. Could be used to ground connection

• Specification for foam gasket with conductive adhesive tape

Name	foam gasket with conductive tape
Shielding effectiveness	60-80dB/30MHz-1GHz
Surface resistance	<0.07ohms/sq inch
Permanent deformation	< 10%
Temperature range	-10~110°c
Flammability	UL 94(HF-1)
Compression	30-50%

• Application for foam gasket with conductive adhesive tape

Widely used in electronic box,case,interior chassis, industrial equipment,

notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

• Type for foam gasket with conductive adhesive tape

“V” type

“D” type

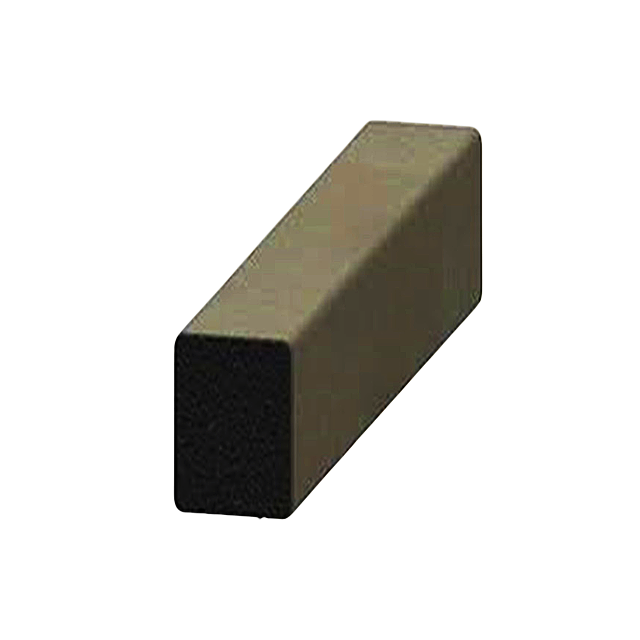

Rectangle type

Customized accept

• Other information for conductive foam gasket with adhesive

Foam gasket
MOQ	50M
Delivery time	5-7days
Payment Terms	T/T, Paypal, Western Union
Longest dimension cut	1.22m/pcs
Place of region	China

Conductive Foam Rectangle RF Shielding Gasket For MRI Faraday Cage Emi Rfi Fabric

PRODUCT DATASHEET
PRODUCT NAME
CONDUCTIVE FOAM
PRODUCT PERFORMANCE
SURFACE RESISTANCE	≤0.05Ω/INCH UNDER 100g LOAD
RF SHIELDING EFFECTIVENESS	80dB@30M-1HHz ASTM4935
heat resistant temperature	-10℃-110℃
Adhesion strength	≥1.3(Kg/25mm)
initial adhesion	1600g/25mm (non-conductive type)
Maintain adhesion	1440Min/inch
Product material ingredient
*Sponge*
Density	50Kg/m³
Elongation	75%
Fire-proof level	UL94(HF-1)
*Conductive fabric*
Material	Polyester0.09mm plating Cu0.003mm+Ni 0.003mm
Thickness	0.093mm
Surface resistance	0.022Ω-0.03Ω/inch
Elongation	20/22%(wp/wt)
Operating temperature	-10℃-170℃
tensile strength	25.4/24.4Kg f/25mm (wp/wt)
Rf shielding effectiveness	80dB/30M-1GHz (ASTM4935)
organization	Ripstop type Taffeta type
*Both sided conductive tape*
Material		no substrate acrylic glue+Ni
Operating temperature		-20℃-100℃
initial force		6#CM
Peel force		1.6Kg/25mm
Maintain force		24hrs/1Kg/25mm*25mm
Surface resistance		≤0.05Ω/sp
